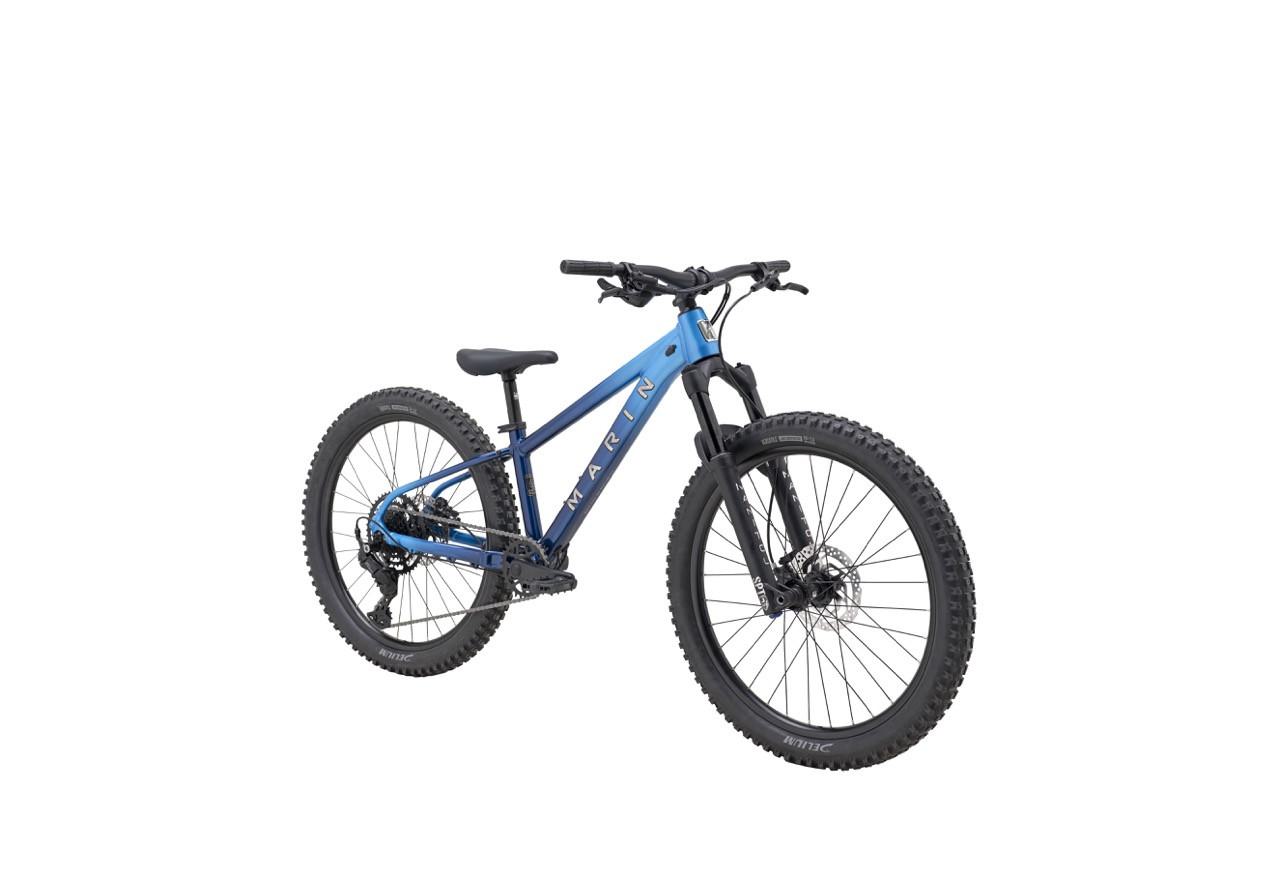

Marin San Quentin Junior 24″ 2026 – Blue

San Quentin 24″
The Marin San Quentin 24”, just like the big kid’s version, shreds the boundaries of the mountain bike genres – doing it all with a huge splash of big air, speed and style.
The San Quentin 24” will feel just like a ‘grown up’ mountain bike to your little ripper, built with a stout Series 2 aluminum frame, 24” wheels, an RockShox suspension fork, 9-speed microSHIFT drivetrain and kid’s specific hydraulic disc brakes.
Technology
Dirt jump inspired frame style:
Taking cues from the Alcatraz, as well as the full-size San Quentin lineup, the San Quentin 24” and 20” proved all the benefits of DJ style, with massive standover, slick frame tubes, and a hot paint job.
Series 2 aluminium frame:
San Quentin 24” and 20” both feature a Series 2 aluminum frame, with a tapered headtube, 3D forged dropouts, IS brake mounts, semi-internal cable routing and 135mm open dropouts.
Modern Trail Geometry:
A slack headtube angle paired with a steep seat tube angle creates a ride that will fly uphill, yet descend like it’s on rails. The balanced rider position is puts the rider weight between the wheels for steady climbing and handling on flats, while the slack front end helps to add higher speed stability through turns and rough patches.
1x Wide-Range Drivetrain:
Modern 1x drivetrains, just like the larger San Quentins, give the rider the benefits of shifting simplicity and chain retention.
Geometry
A
– STACK
541
B
– REACH
345
C
– HEAD TUBE ANGLE
65 °
D –
HEAD TUBE LENGTH
90
E –
SEAT TUBE ANGLE
75 °
F
– SEAT TUBE LENGTH
331
G –
TOP TUBE EFFECTIVE
490
H
– BB HEIGHT
292
I
– BB DROP
30
J
– CHAIN STAY
340
K
– WHEEL BASE
1009
L –
STAND OVER HEIGHT
588
M
– FORK OFFSET
42
SEATPOST DIAMETER
30.9
HANDLEBAR WIDTH
590
STEM LENGTH
35
CRANK LENGTH
152
